Onyx Preamps
Our renowned Onyx mic preamps are designed for maximum studio-quality performance. Ultra-low noise and up to 60dB of gain means tons of headroom and crystal-clear sound, whether you’re live streaming, podcasting or recording music.
GigFX Effects Engine
High-resolution GigFX eects include 12 FX Processors you can edit and save on the fly via the full-size LCD screen. Combining the warmth of an analog recording console with precise digital eects, the ProFXv3 Series is ideal for home studios and live events alike.
USB Recording Modes

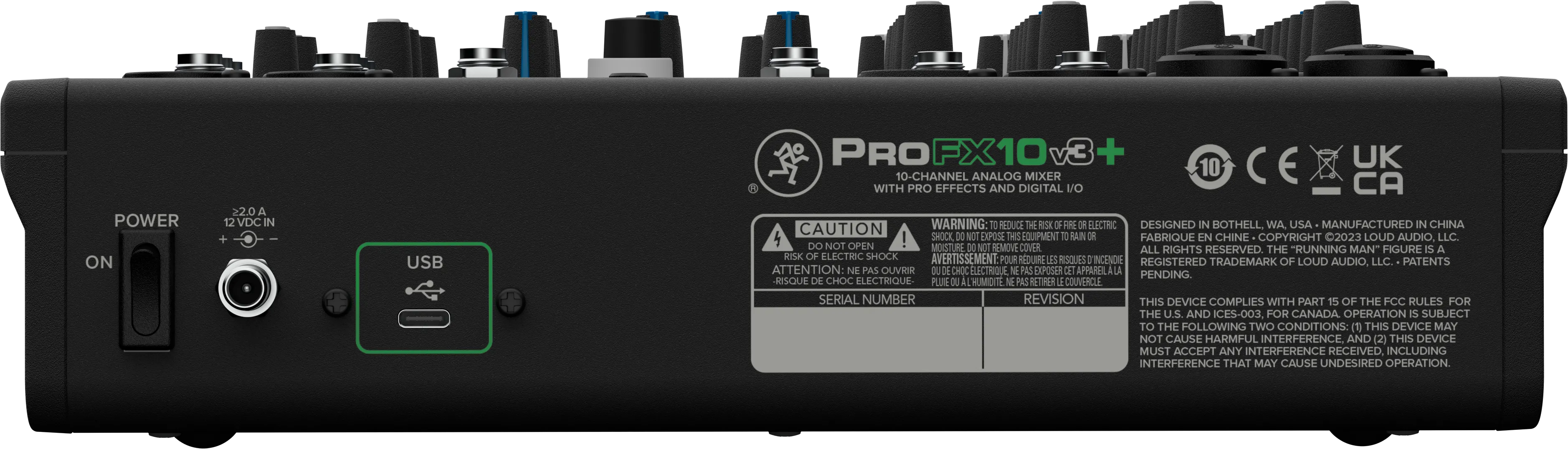

Record at pristine 24-bit / 192 kHz quality with a built-in 2×4 USB-C audio interface, complete with three recording modes: Standard for the full mix with effects, Loopback to include computer audio, and Interface to record channel 1-2 without effects or processing.
Bluetooth®
Use the dedicated Bluetooth® channel to send and receive audio from devices like smartphones and tablets. For podcasters, it’s an eortless way to bring in phone calls. For musicians and performers, it’s an easy way to stream outside music and backing tracks.

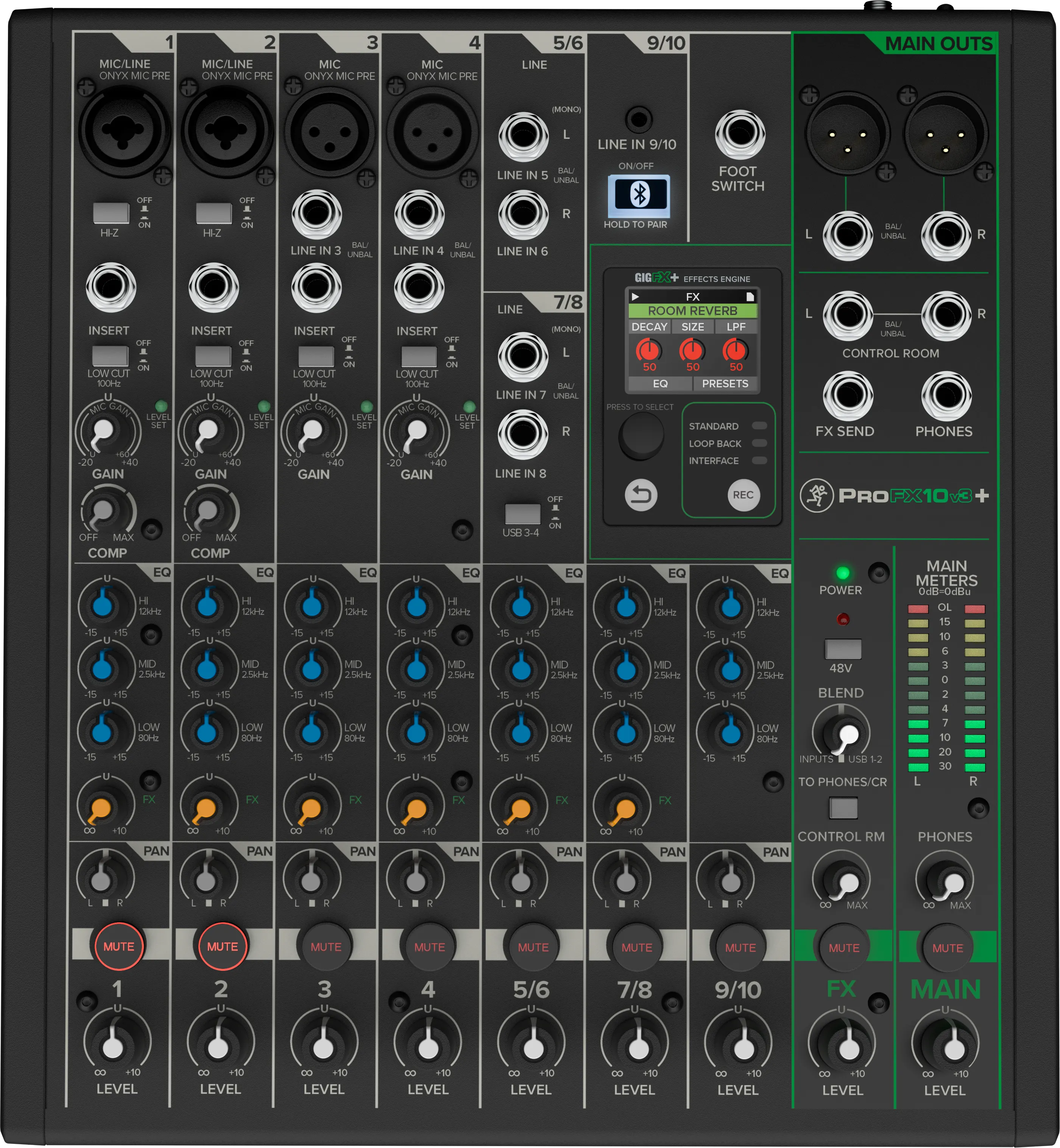

FEATURES
High-Resolution GigFX ™ Effects Engine
- Enhance your sound with 12 upgraded FX options
- Edit and save presets on the fly with the color LCD screen
- USB-C connection
- Standard: Main mix including GigFX effects and tone-shaping EQ
- Loopback: Computer audio added to main mix, great for live streaming
- Interface: Untouched audio from channels 1 and 2, without effects or EQ
- Integrate callers from an external device like a smartphone or tablet
- Stream music from your device, directly into the mixer
- Easily blend between monitoring your computer output and a direct feed from the mixer
- Waveform OEM™ included

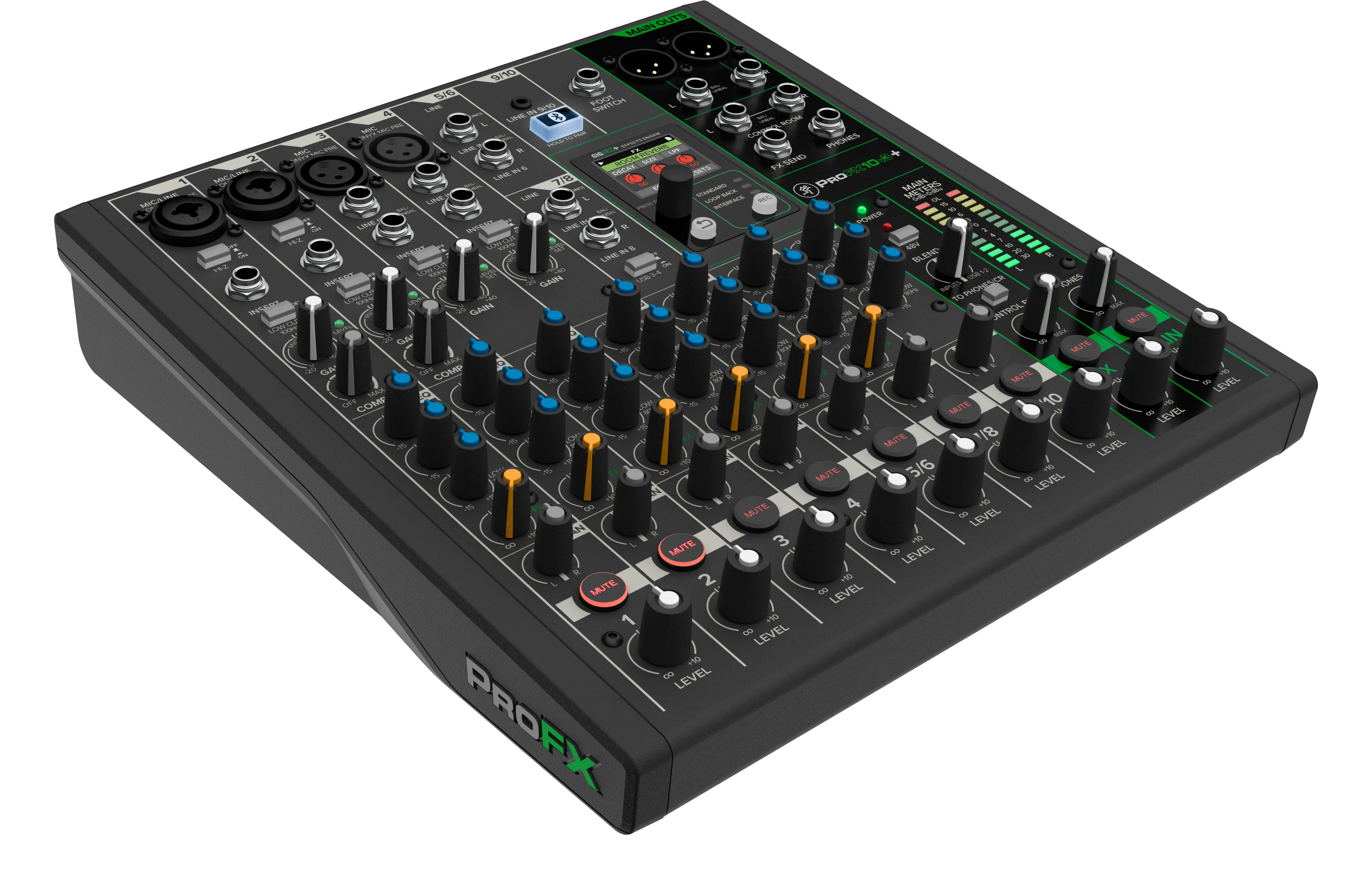

- Legendary Built-Like-A-Tank design
- Solid steel chassis
- Tough ABS side protection
Renowned Onyx Mic Preamps
- 4 Onyx mic pres with up to 60 dB of gain and ultra-low noise performance
The Essential Mixing Tools You Need
- 3-band EQ on all channels
- One-knob compression on channels 1 and 2
- Hi-Z switches allow direct connection of instruments
- 100 Hz low-cut filter and 48V phantom power on all mic channels
- Stereo 1/8" input on channel 9/10
Inputs
- Input Channels: 10
- Mono Mic/Line: 4
- Mic/Stereo Line: N/A
- Stereo Line: 3
- Mic Preamp: 4
- Global Phantom Power ( 48V): Yes
- 100 Hz Low Cut Filter: Yes
- Channel EQ: 3-Band Fixed
- Channel Inserts: 4
- Aux Sends: 1
- Subgroups: N/A
- Main Outputs: XLR & 1/4"
- Main Meters: 2 × 12
- Level Controls: Rotary Pots
- Internal FX: Stereo w/ 12 Customizable FX Processors
- Compressors: 2 (Knob)
- Digital Recording: 2×4 192kHz 24-Bit
- Recording Modes: Standard, Loopback, Interface
- USB Connector: USB-C
- Accessories (Optional): Mixer Bag / Dust Cover
- Power Supply: External 100–240 VAC
- Rackmount: N/A
- Weight: 4.9 lb / 2.2 kg
- Dimensions: 11.9 × 10.7 × 3.3 in / 302 × 272 × 84 mm
